Maple Corner Construction Details
Construction details for Maple Corner Woodworks furniture including beds, tables, chairs and case pieces.
Includes Cherry Moon, Vermont Shaker, American Shaker and Andover Modern Furniture collections.
Bed Construction Details
| Wood: | All solid hardwoods: cherry, maple or walnut. |
|---|---|
| Mattress Support: |

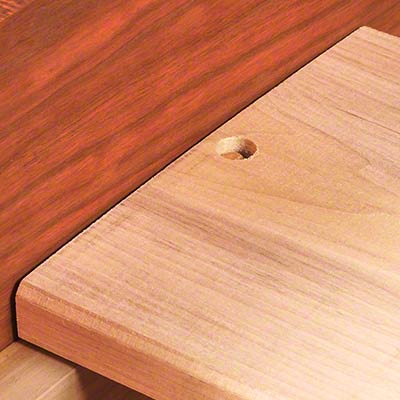

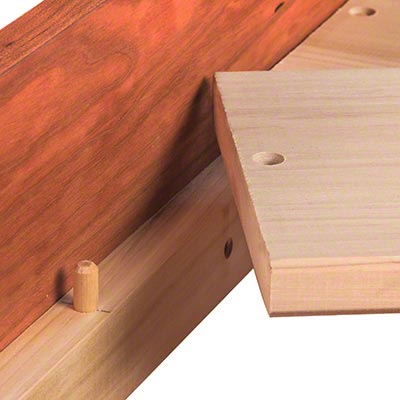

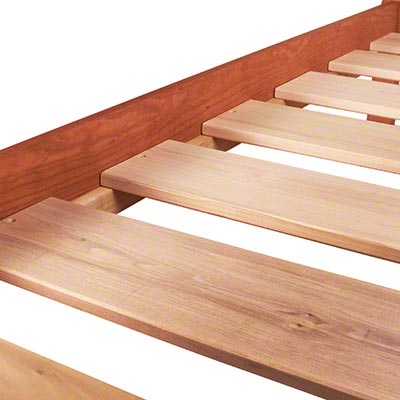

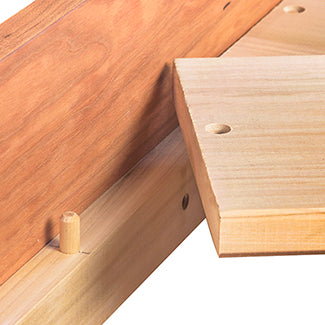

The Cherry Moon Dovetail Bed uses 20 hardwood slats, each about 23⁄8" wide and spaced about 15⁄8" apart. These slats slide into the side rails using dovetail joinery. All other Platform style beds use one bundle of 8 hardwood slats to support the mattress. Each slat measures 73⁄4" wide with holes drilled at either end of the slat. The slats slip over pegs distributed evenly along the side rail, creating a solid interlocked platform. On King and Queen size beds, slats are spaced 21⁄4" apart - on Full and Twin size beds this spacing is 13⁄4". Mattress and Box Spring style beds use a set of 4 hardwood slats to support the box spring and mattress combination. Center Bed Slat Support for King Beds: A hardwood beam that drops into pre-attached hardware in the center of the head and footboards; located just below the slats to provide additional support. The space below the slats remains open for under bed storage. |

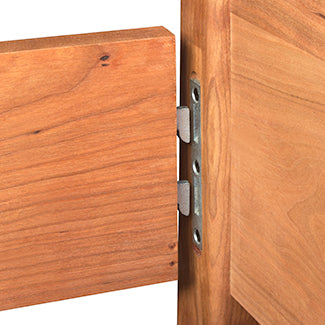

| Side Rails: | Side rails are connected to the headboard and footboard using a steel quick latch. |
| Joinery: | We use mortise and tenon joinery in the headboard and footboard. |
| Finish: | Cherry and Walnut beds are finished with hand rubbed linseed oil only. Maple beds are finished with Poly gel only as the maple grain is more dense and it does not absorb linseed oil as well as the other woods. Little to no VOCs upon delivery. |
| Shipping: | Beds ship disassembled. Free set-up and installation by white glove delivery crew. |
| Care: |
Table Construction Details
| Wood: | All solid hardwoods, cherry, maple or walnut. |
|---|---|

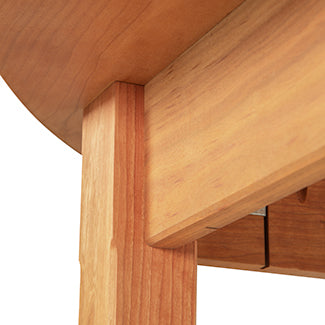

| Leg Connection: |

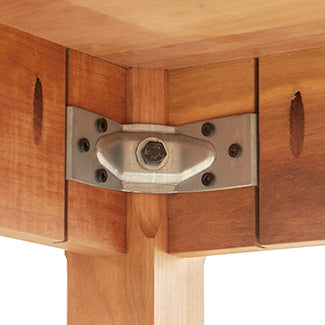

Table legs are attached to the table top using metal corner braces with bolts. |

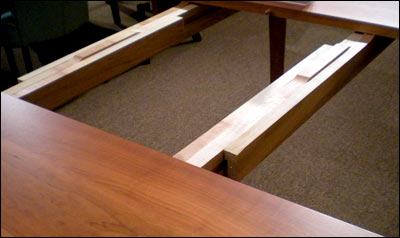

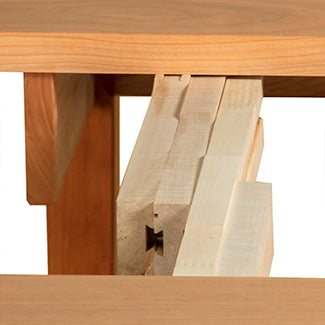

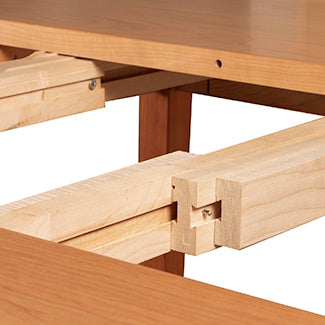

| Extension Slides: | Our dining table extension slides are made out of solid wood. |
| Finish: | Cherry and Walnut tables are finished with a blend of hand rubbed linseed oil and Poly gel. Maple tables are finished with Poly Gel only as the maple grain is more dense and it does not absorb linseed oil as well as the other woods. Little to no VOCs upon delivery. See special care instructions. |
| Shipping: | Tables ship disassembled. Free set-up and installation with white glove delivery. (Small tables may be boxed and shipped via FedEx or UPS: these will ship un-assembled. Customer will need to attach the legs with included hardware.) |
| Care: | Furniture Care Instructions |
Chair Construction Details
| Wood: | All solid wood. Cherry only. |
|---|---|
| Joinery: | Mortise & Tenon / glued dowel. |
| Upholstered Seats: | Attached with 4 screws, one per corner. |
| Wooden Seats: | Attached with mortise & tenon joinery. |
| Finish: | Eco friendly, low maintenance lacquer. Little to no VOCs upon delivery. |
| Shipping: | Standard shipping. Some arm chairs may require simple assembly of the arms. |
| Care: | Furniture care instructions. |
Case Construction Details
| Wood: | All solid hardwoods, cherry, maple or walnut. Exceptions noted below. |
|---|---|

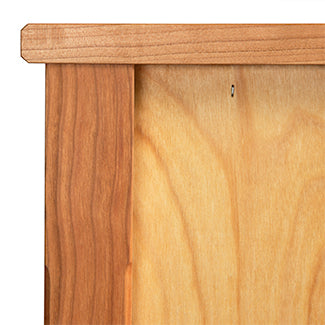

| Backs: | Birch one-piece panels. Veneered and solid wood backs are available for an upcharge of 15% - 45%, Contact us for details. |

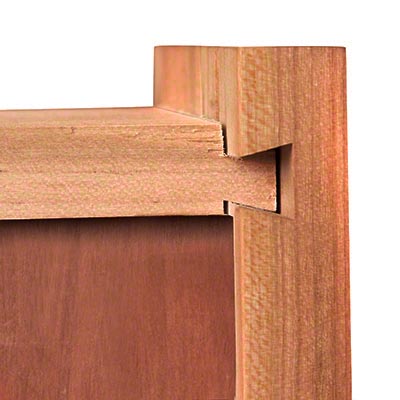

| Sides & Shelves: | The sides and shelves of these case pieces are crafted using solid hardwood veneers (cherry, maple or walnut) over premium furniture grade plywood. |

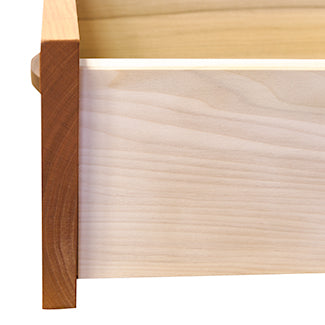

| Drawer Fronts: | One-piece drawer fronts are cut from a single board rather than multiple pieces glued together. |
| Drawer Sides/Backs: | Solid poplar wood. |
| Drawer Sides/Backs: | Solid wood. |
| Drawer Bottoms: | Solid birch veneer panels. |

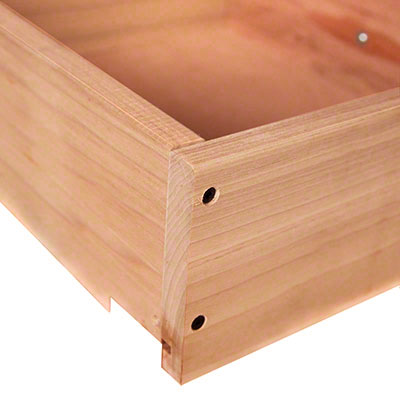

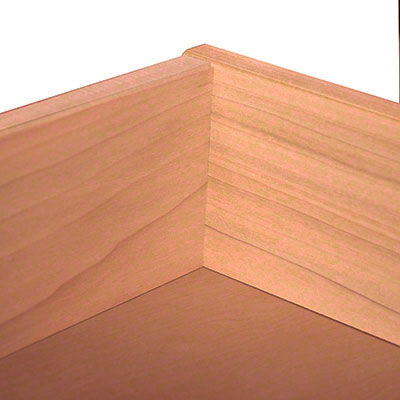

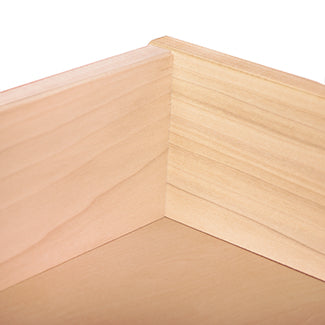

| Drawer Joinery: | Sliding dovetail. |

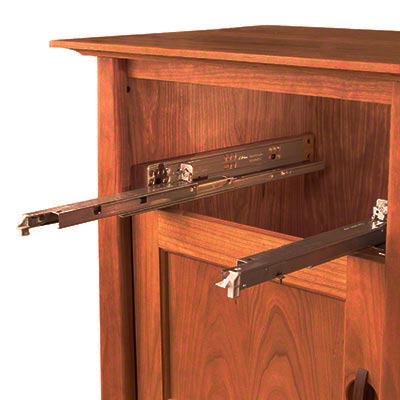

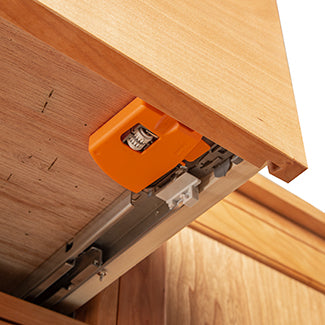

| Drawer Slides: | Full extension metal undermount slides. |

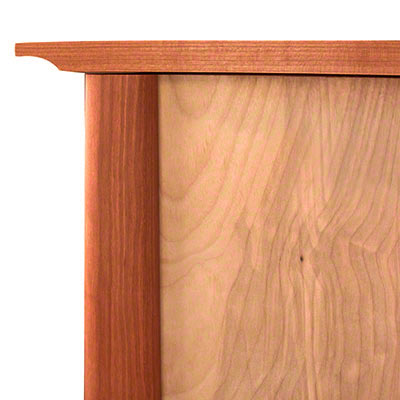

| Doors: | Solid wood floating panels. |

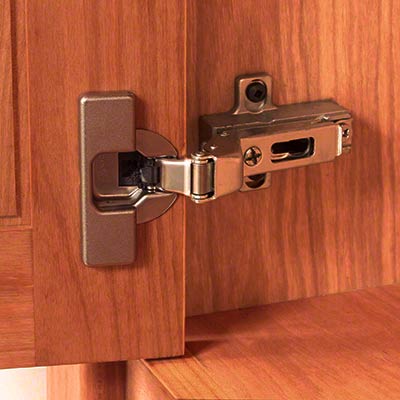

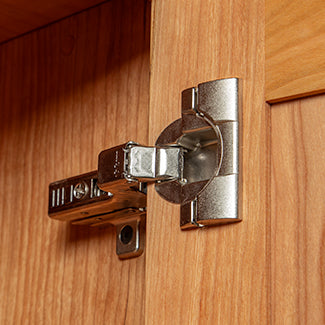

| Door Hinges: | Adjustable european hinges. |

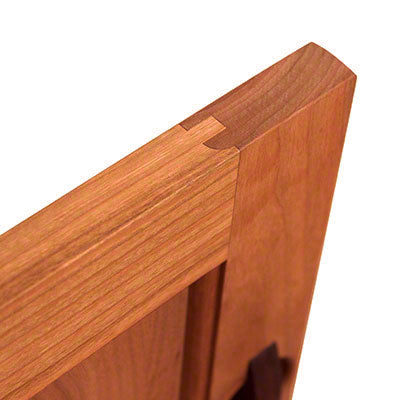

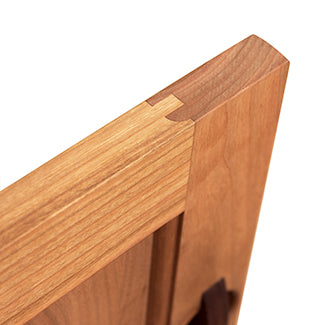

| Stiles & Rails: | Cope and stick. |
| Finish: | Case tops are a blend of hand rubbed linseed oil and Poly gel. Case sides/interiors/drawer cases are linseed oil only. Maple casegoods are finished with Poly gel only as the maple grain is more dense and it does not absorb linseed oil as well as the other woods. Little to no VOCs upon delivery. See special care instructions. |
| Shipping: | Our case pieces ship fully assembled. Free installation by white glove delivery crew. (Small case pieces that are not part of a larger order may be boxed and shipped by FedEx or UPS.) |
| Care: |
